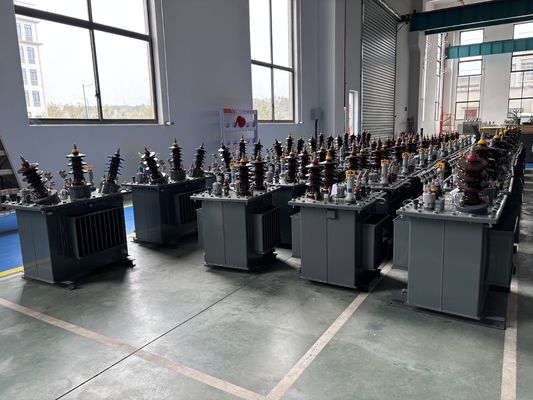

ONAN Cooling Method Oil Immersed Transformer for Energy Transmission in Heavy Duty Applications with 45 Oil Grade

Product Description:

An Oil Immersed Power Transformer is a type of transformer that operates by immersing its core and windings in oil for cooling and insulation purposes. This particular Oil Immersed Power Transformer is designed with the following specifications:

Cooling Method: ONAN

Rated Frequency: 50Hz

Connection Group: Dyn11

Number of Phases: 3

Oil Grade: 45# Oil

As an Oil Immersed Power Transformer, this product is highly efficient in transferring electrical energy from one circuit to another through electromagnetic induction. The use of oil as a cooling and insulating medium helps in dissipating heat generated during operation, ensuring optimal performance and longevity of the transformer.

This Oil Immersed Distribution Transformer is specifically designed for use in industrial and commercial settings where a reliable and steady power supply is essential. The ONAN cooling method ensures that the transformer operates efficiently at rated frequency of 50Hz, making it suitable for a wide range of applications.

The connection group Dyn11 configuration of this Oil Immersed Power Transformer is ideal for systems requiring low voltage distribution with minimal losses. With three phases, this transformer is capable of handling three-phase power distribution effectively, ensuring balanced and stable output.

The use of 45# Oil grade in this Oil Immersed Power Transformer further enhances its performance and reliability. The high-quality oil provides excellent insulation properties, preventing electrical breakdown and ensuring safe operation under varying load conditions.

In conclusion, this Oil Immersed Power Transformer is a reliable and efficient solution for power distribution needs in various industrial and commercial environments. With its ONAN cooling method, 50Hz rated frequency, Dyn11 connection group, three-phase configuration, and 45# Oil grade, this transformer offers optimal performance, durability, and safety for critical power applications.

Features:

• Product Name: Oil Immersed Power Transformer
• Insulation class: A
• Rated capacity: 50/25KVA
• Tapping range: ±2x2.5%
• Breakdown Voltage: 60kV
• No. of phase: 3

Technical Parameters:

Applications:

The Oil-immersed Power Transformer is a versatile and reliable product suitable for a wide range of application occasions and scenarios. As an essential component in electrical power distribution systems, this Oil Immersed Distribution Transformer plays a crucial role in ensuring efficient and safe power transmission.

With a Model Number of S-M-50KVA or 25KVA, this transformer is designed and manufactured in CHINA, adhering to the highest quality standards. It is certified by GB, guaranteeing its compliance with rigorous industry regulations. The Packaging Details include a secure WOODEN PALLET, ensuring safe transportation and storage.

Designed with a Tapping range of ±2x2.5% and meeting the Standard IEC60076, this Oil Immersed Transformer is equipped with ONAN cooling method, making it suitable for various environments and operating conditions. The transformer operates on a 3-phase system, providing stable and reliable power distribution.

With a Rated current of 200.8/733.2 A, this Oil-immersed Power Transformer is ideal for industrial applications, commercial buildings, residential complexes, and more. Its robust construction and efficient cooling system make it suitable for continuous operation and varying load conditions.

Whether it's for upgrading an existing power distribution system or setting up a new one, the Oil Immersed Distribution Transformer offers a reliable and cost-effective solution. Its high efficiency and durability make it a preferred choice for utility companies, industrial facilities, and infrastructure projects.

In conclusion, the Oil-immersed Power Transformer with its advanced features and reliable performance is a versatile solution for various application scenarios. Its Brand Name, Model Number, Place of Origin, Certification, Packaging Details, and other attributes make it a top choice for those in need of a high-quality Oil Immersed Transformer for their power distribution needs.

Customization:

Product Customization Services for the Oil Immersed Power Transformer:

Brand Name: Oil Immersed Transformer

Model Number: S-M-50KVA or 25KVA

Place of Origin: CHINA

Certification: GB

Packaging Details: WOODEN PALLET

No. of phase: 3

Breakdown Voltage: 60kV

Oil Grade: 45# Oil

Insulation Class: A

Ambient Temperature: 25℃

Support and Services:

Our Product Technical Support and Services for Oil Immersed Power Transformer include:

- Installation guidance and support

- Troubleshooting assistance

- Routine maintenance recommendations

- Repair and replacement services

- Technical consultations

Packing and Shipping:

Product Packaging:

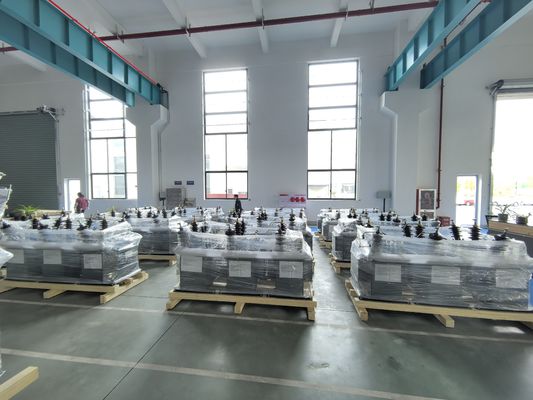

The Oil Immersed Power Transformer is carefully packaged to ensure safe transportation and delivery. It is securely placed in a sturdy wooden crate and surrounded by protective padding to prevent any damage during transit.

Shipping:

Once the product is packaged, it will be loaded onto a specialized freight carrier for shipping. Our team works with trusted shipping partners to ensure that the Oil Immersed Power Transformer reaches its destination safely and on time.

FAQ:

Q: What is the brand name of the Oil Immersed Power Transformer?

A: The brand name is Oil-immersed transformer.

Q: What are the available model numbers for the Oil Immersed Power Transformer?

A: The available model numbers are S-M-50KVA and 25KVA.

Q: Where is the Oil Immersed Power Transformer manufactured?

A: The transformer is manufactured in CHINA.

Q: What certification does the Oil Immersed Power Transformer have?

A: The transformer is certified with GB standards.

Q: How is the Oil Immersed Power Transformer packaged for shipping?

A: The transformer is packaged in wooden pallets for shipping.
