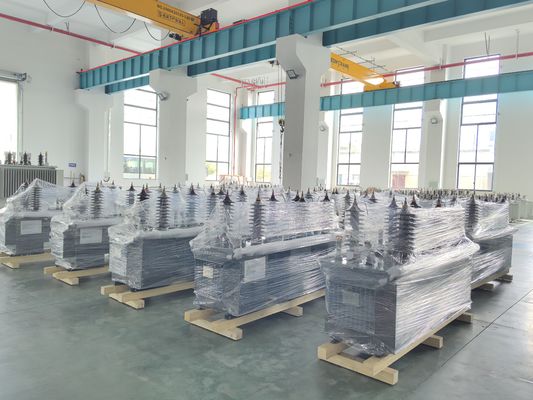

60kV Breakdown Voltage Oil Immersed Power Transformer for Dyn11 Connection Group at 25C Ambient Temperature

Product Description:

An Oil Immersed Distribution Transformer is a vital component in electrical power distribution systems, serving to step-up or step-down voltage levels for efficient transmission and distribution. This product summary focuses on a specific model of Oil Immersed Power Transformer with the following key attributes:

Oil Grade: 45# Oil

Connection Group: Dyn11

Rated Current: 200.8/733.2 A

Rated Capacity: 50/25KVA

Rated Frequency: 50Hz

Oil Immersed Distribution Transformers, also known as Oil Immersed Power Transformers, are designed to efficiently transfer electrical energy between two or more circuits through electromagnetic induction. The use of 45# Oil as the insulating and cooling medium in this transformer ensures effective heat dissipation and insulation properties.

With a connection group specified as Dyn11, this transformer is configured in such a way that the primary and secondary windings are connected in a delta (Δ) shape on the primary side and in a star (Y) shape on the secondary side. This arrangement allows for flexibility in voltage adjustments and ensures stable performance in various power distribution applications.

The rated current of 200.8/733.2 A indicates the maximum current that can flow through the primary and secondary windings of the transformer under normal operating conditions. This current rating is crucial for ensuring the safe and efficient transfer of electrical power within the specified limits.

When it comes to rated capacity, this Oil Immersed Power Transformer is capable of handling loads up to 50/25KVA. The KVA (Kilovolt-Ampere) rating signifies the apparent power handling capacity of the transformer, taking into account both the voltage and current requirements of the connected electrical systems.

Operating at a rated frequency of 50Hz, this transformer is optimized for use in regions where the standard power supply frequency is 50 Hertz. The design and construction of the transformer are tailored to ensure reliable performance and minimal energy losses at this frequency level.

In conclusion, this Oil Immersed Power Transformer with its 45# Oil grade, Dyn11 connection group, rated current of 200.8/733.2 A, rated capacity of 50/25KVA, and rated frequency of 50Hz offers a reliable and efficient solution for power distribution systems. Its robust design, high-quality materials, and precise engineering make it a dependable choice for various industrial, commercial, and utility applications.

Features:

• Product Name: Oil Immersed Power Transformer
• Cooling method: ONAN
• Standard: IEC60076
• Breakdown Voltage: 60kV
• Connection group: Dyn11
• Insulation class: A

Technical Parameters:

Applications:

The Oil Immersed Power Transformer, also known as the Oil Immersed Distribution Transformer, is a versatile product suitable for various application occasions and scenarios. With the brand name Oil-immersed transformer and models available such as S-M-50KVA or 25KVA, this transformer is a reliable and efficient solution for power distribution needs.

Manufactured in CHINA, this transformer meets the highest quality standards and is certified with GB certification. The packaging details include wooden pallets for secure transportation and storage.

Designed to operate at a rated frequency of 50Hz, this Oil Immersed Transformer has a breakdown voltage of 60kV, ensuring safe and reliable performance. Its ambient temperature rating of 25℃ makes it suitable for a wide range of environmental conditions.

Compliant with the IEC60076 standard, this transformer offers a tapping range of ±2x2.5%, providing flexibility in adjusting the output voltage as needed. Whether used in industrial settings, commercial buildings, or residential areas, the Oil Immersed Transformer excels in delivering stable and efficient power distribution.

Thanks to its robust construction and advanced design, this transformer is ideal for use in power plants, substations, renewable energy projects, and more. Its versatility and reliability make it a preferred choice for various application scenarios where consistent power supply is essential.

Overall, the Oil Immersed Power Transformer is a high-quality product that combines performance, durability, and efficiency, making it a valuable asset for any power distribution system.

Customization:

Product Customization Services for Oil Immersed Power Transformer:

Brand Name: Oil-immersed transformer

Model Number: S-M-50KVA or 25KVA

Place of Origin: CHINA

Certification: GB

Packaging Details: WOODEN PALLET

Insulation class: A

Rated current: 200.8/733.2 A

Rated frequency: 50Hz

Breakdown Voltage: 60kV

Standard: IEC60076

Support and Services:

Our Oil Immersed Power Transformer product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is available to assist with installation, setup, and maintenance of the transformer. Additionally, we offer troubleshooting and repair services to address any issues that may arise during the product's lifespan. Our goal is to provide you with the highest level of support to maximize the efficiency and longevity of your Oil Immersed Power Transformer.

Packing and Shipping:

Product Packaging:

The Oil Immersed Power Transformer is carefully packaged to ensure safe transportation and delivery. It is securely placed in a sturdy wooden crate with adequate cushioning to prevent any damage during transit. The crate is then sealed to protect the transformer from dust, moisture, and other external elements.

Shipping Information:

Once packaged, the Oil Immersed Power Transformer is ready for shipment. We partner with reliable shipping carriers to deliver the product to your specified location. Our team ensures that the transformer is loaded onto the shipping vehicle following all safety protocols and handling procedures. You will receive a tracking number to monitor the status of your shipment until it reaches its destination.

FAQ:

Q: What is the brand name of the Oil Immersed Power Transformer?

A: The brand name of the Oil Immersed Power Transformer is Oil-immersed transformer.

Q: What are the available model numbers for the Oil Immersed Power Transformer?

A: The available model numbers are S-M-50KVA and S-M-25KVA.

Q: Where is the Oil Immersed Power Transformer manufactured?

A: The Oil Immersed Power Transformer is manufactured in CHINA.

Q: Does the Oil Immersed Power Transformer come with any certification?

A: Yes, the Oil Immersed Power Transformer comes with GB certification.

Q: How is the Oil Immersed Power Transformer packaged for shipping?

A: The Oil Immersed Power Transformer is packaged in wooden pallets for shipping.
